Socket Cutout Measuring Guide

By Printed Splashback

To ensure your glass splashback or panel is manufactured with flawless precision, please follow this step-by-step measurement guide.

We require all measurements to be supplied strictly in mm (millimetres).

1. Overall Glass Size

Before measuring cutout locations, accurately measure and confirm the total width and total height of your entire glass panel.

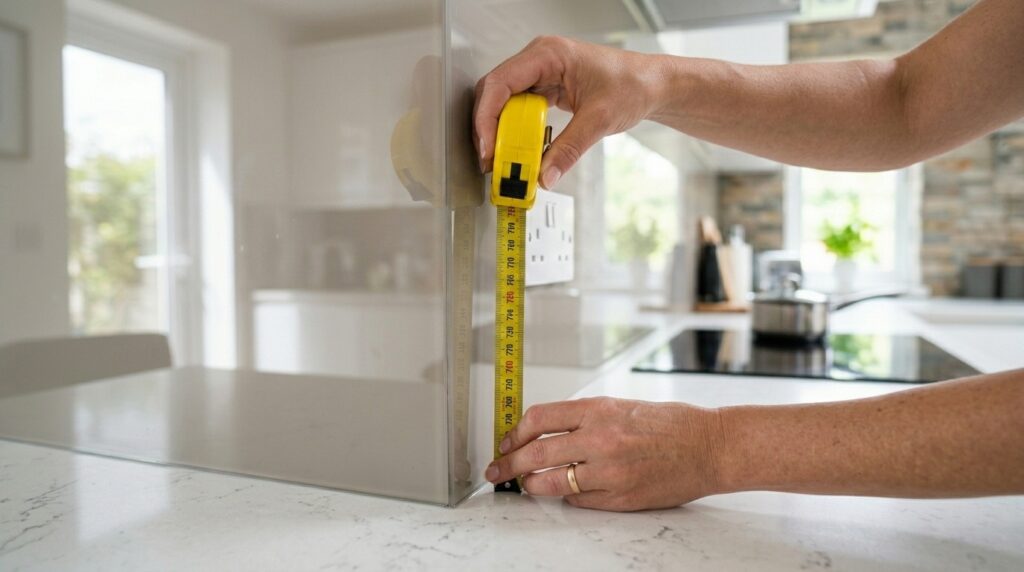

Always use a high-quality tape measure and ensure all values are recorded cleanly in millimetres (mm).

SOCKET TYPE	STANDARD CUTOUT SIZE (W x H)	MEASUREMENT TIP
Single Socket	75mm × 75mm	If you are unsure of your back box size, safely isolate the power, slightly loosen the front faceplate, and measure the wall box directly behind it.
Double Socket	135mm x 75mm

Choose one of the two options below to supply your cutout positions. Option A is highly recommended for maximum precision.

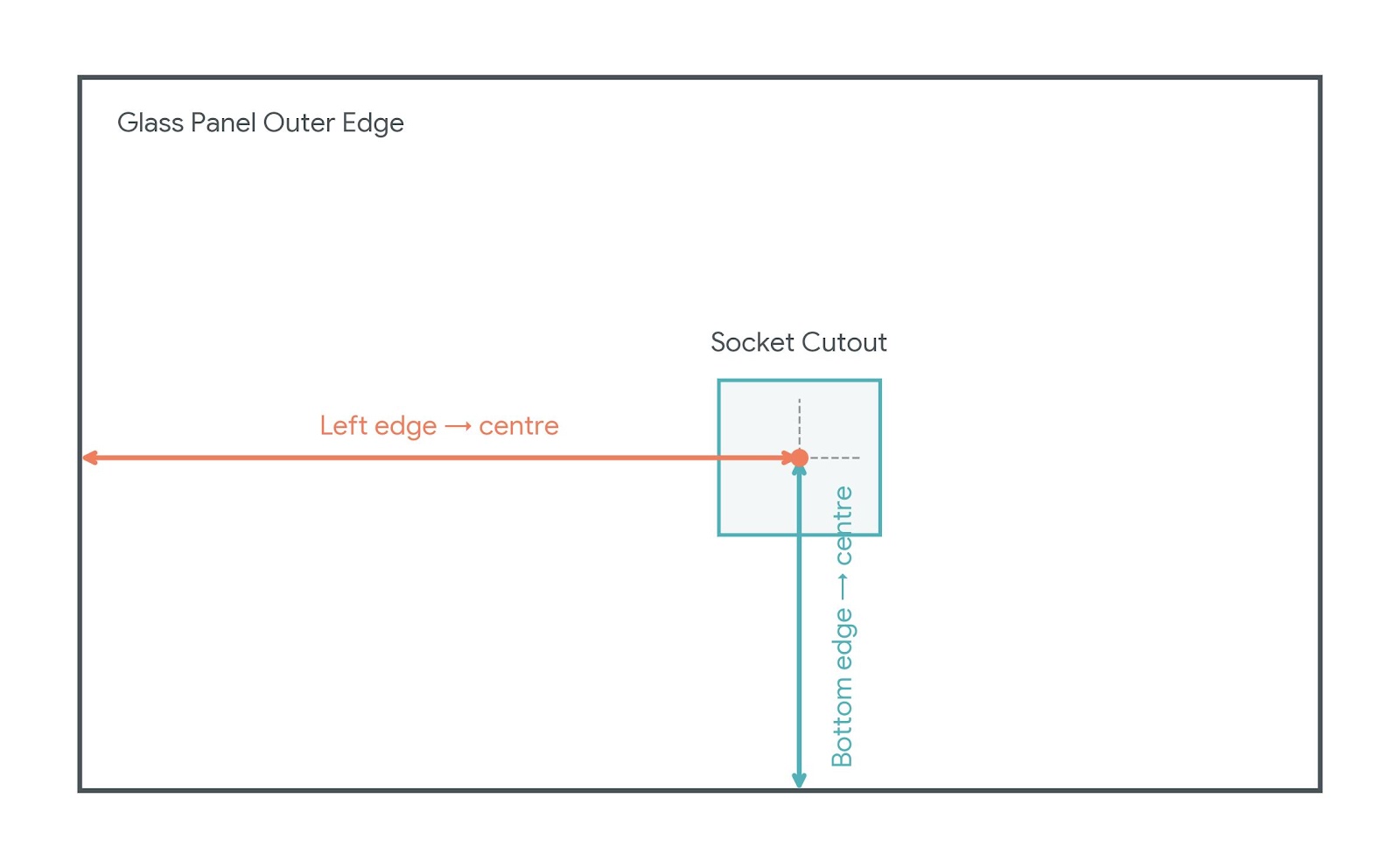

Measure a straight horizontal line from the left edge of the glass to the exact centre of the socket box.
Measure a straight vertical line from the bottom edge of the glass to the exact centre of the socket box.

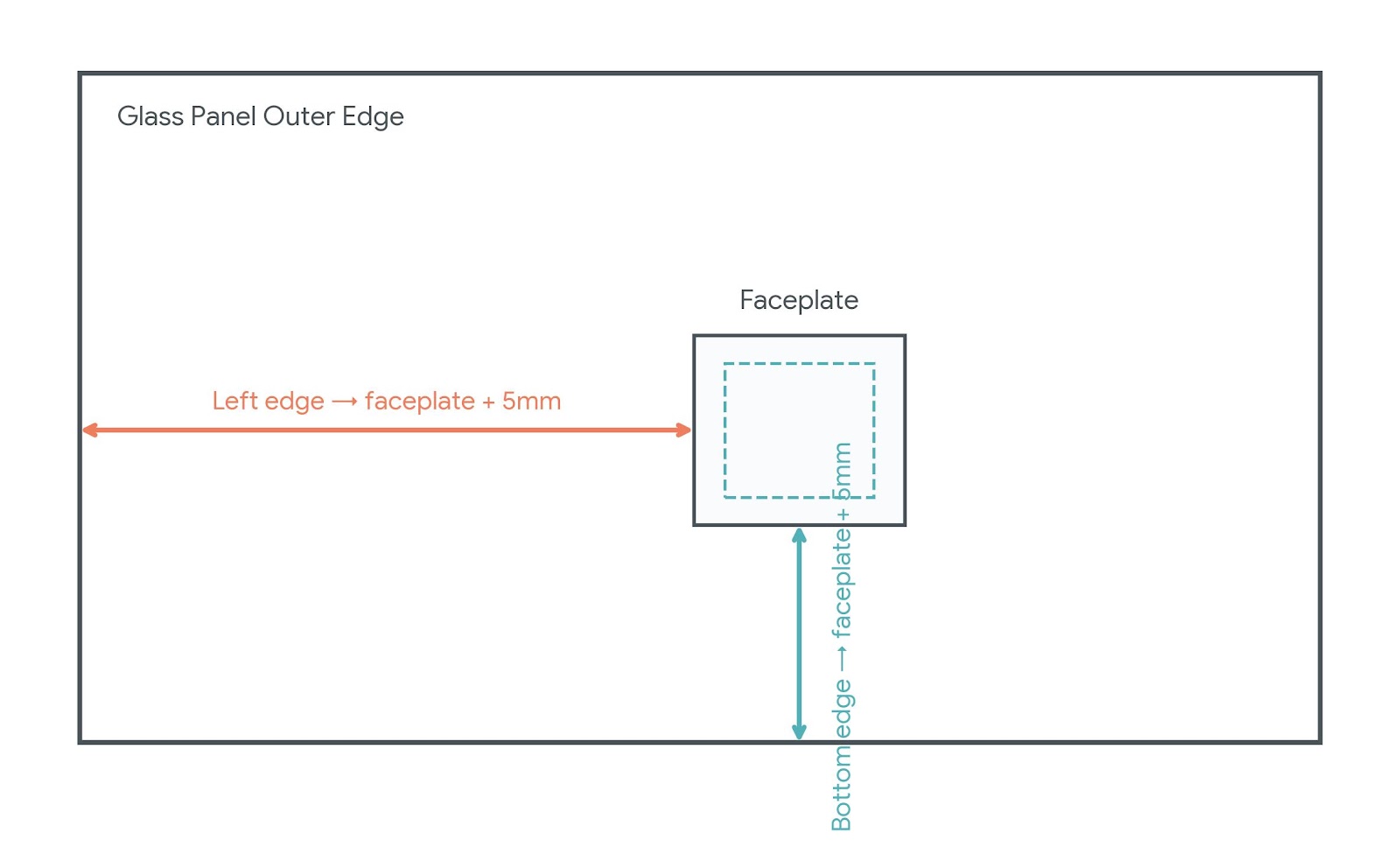

Measure from the left edge of the glass to the outside edge of the faceplate, then add 5mm.
Measure from the bottom edge of the glass to the bottom edge of the faceplate, then add 5mm.
